Product Details
Place of Origin: China
Brand Name: Yuka
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Box Package
Delivery Time: 3-7working days
Payment Terms: L/C,T/T
Supply Ability: 300,000pcs/month
Model No.: |
YD068 |
Origin: |
China |
Element Serve Life: |
6000~8000 Hours |
Trademark: |
Yuka |
HS Code: |
8421399090 |
Clapboard: |
Without Clapboard |
Filter Number: |
1 |
Medium Material: |
Fiberglass |
Type: |
Cartridge Filter |
Material: |
Aluminum Alloy |
Housing Serve Lige: |
15 Years |
Filtration Performance: |
From 5 μm To 0.01μm |
Maxi. Operate Pressure: |
1.0mpa |
Operate Temperature: |
1.5~80ºc |
Resistance Corrosion: |
Inside And Outside |
Parts: |
Dp Indicator, Auto Drain, Sight Glass |
Color: |
Red |
Transport Package: |
Brown Inner Box & Cardboard |
Efficiency: |
F5 |
Filtration Grade: |
Medium Filter |
Connection: |
Rc3/4" |
Specification: |
Dimension: 120x 110x377mm |
Flow Rate: |
2.8m³/Min |
Diversion Fin Design On Element Top Cap: |
Less Pressure Loss |
OEM & ODM Service: |
Yes |
Pressure Loss: |
About 0.25 Bar |
Bleed Valve: |
Available |
Model No.: |
YD068 |
Origin: |
China |
Element Serve Life: |
6000~8000 Hours |
Trademark: |
Yuka |
HS Code: |
8421399090 |
Clapboard: |
Without Clapboard |
Filter Number: |
1 |
Medium Material: |
Fiberglass |
Type: |
Cartridge Filter |
Material: |
Aluminum Alloy |
Housing Serve Lige: |
15 Years |
Filtration Performance: |
From 5 μm To 0.01μm |
Maxi. Operate Pressure: |
1.0mpa |
Operate Temperature: |
1.5~80ºc |
Resistance Corrosion: |
Inside And Outside |
Parts: |
Dp Indicator, Auto Drain, Sight Glass |
Color: |
Red |
Transport Package: |
Brown Inner Box & Cardboard |
Efficiency: |
F5 |
Filtration Grade: |
Medium Filter |
Connection: |
Rc3/4" |
Specification: |
Dimension: 120x 110x377mm |
Flow Rate: |
2.8m³/Min |
Diversion Fin Design On Element Top Cap: |
Less Pressure Loss |
OEM & ODM Service: |
Yes |
Pressure Loss: |
About 0.25 Bar |
Bleed Valve: |
Available |

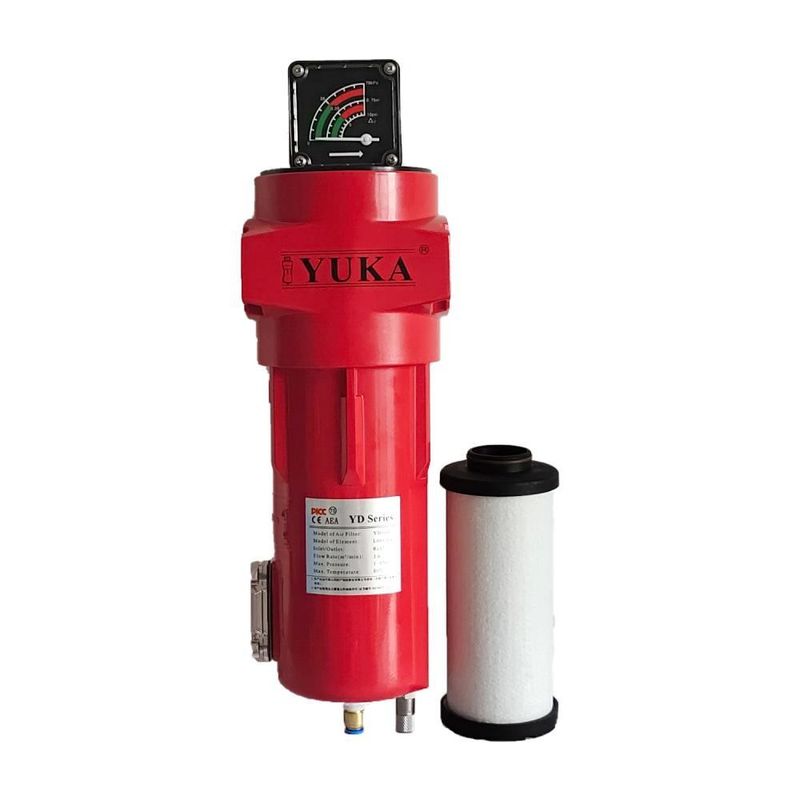

Is your compressed air pure and clean?
Dust, various impurities, hydrocarbons and wather in the form of humidity are the main contamination agents enclosed in atmospheric air.Compresssion process escalates and steps up the concentration of such pollution in the air, representing a threat for your business. Compressed air circuits are filled with these contaminants and corrosion comes as the natural effect of such problem. Protect and maintain your downstream equipment thanks to YUKA line Air Filters.
Product Overview
| Commodity | Compressed Air Filter | |||||
| Model | YD058 | |||||
| Flow rate | 2.8m³/min | |||||
| Element grade | 5μm/1μm /0.01μm/0.001mg/m³ | |||||
| Working pressure | 143psi g | |||||
| Working temperature | 1.5℃~80℃ | |||||
| Material | Aluminum Alloy | |||||
| Color of housing | Red | |||||
| Trade term | EXW & FOB SHENZHEN | |||||
| Package | Internal Box & External Carton | |||||
| Warranty | 15 years for filter housing, 4000-6000 hours under rated working conditions for Filter Element | |||||
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
| Model | Pipe size | Flow rates | Dimension (mm) | |||||||
| L/S | m3/min | scfm | W(Width) | D(Depth) | H(Height) | A | B | C(clearance for housing) | ||
| YD017 | RC1/2" | 16.7 | 1.0 | 35.3 | 89 | 79 | 246 | 40 | 186 | 118 |
| YD025 | RC3/4" | 25.0 | 1.5 | 53.0 | 89 | 79 | 246 | 40 | 186 | 118 |
| YD030 | RC1/2" | 30.0 | 1.8 | 63.6 | 89 | 79 | 280 | 40 | 220 | 158 |
| YD035 | RC3/4" | 33.3 | 2.0 | 70.6 | 89 | 79 | 280 | 40 | 220 | 158 |
| YD058 | RC3/4" | 46.7 | 2.8 | 98.9 | 120 | 110 | 377 | 55 | 276 | 195 |
| YD068 | RC1" | 60.0 | 3.6 | 127.1 | 120 | 110 | 377 | 55 | 276 | 195 |
| YD080 | RC1" | 80.0 | 4.8 | 169.5 | 120 | 110 | 477 | 55 | 377 | 290 |
| YD145 | RC2" | 120.0 | 7.2 | 254.2 | 120 | 110 | 477 | 55 | 377 | 290 |
| YD220 | RC1-1/2" | 200.0 | 12.0 | 423.7 | 162 | 151 | 676 | 64 | 566 | 480 |
| YD260 | RC2" | 233.3 | 14.0 | 494.4 | 162 | 151 | 676 | 64 | 566 | 480 |
| YD330 | RC2" | 267.2 | 16.0 | 564.8 | 162 | 151 | 984 | 64 | 875 | 780 |
| YD360 | RC2-1/2" | 317.3 | 19.0 | 670.7 | 162 | 151 | 984 | 64 | 875 | 780 |
| YD405 | RC2-1/2" | 367.4 | 22.0 | 776.6 | 200 | 189 | 757 | 78 | 634 | 560 |
| YD430 | RC3" | 467.6 | 28.0 | 988.4 | 200 | 189 | 1012 | 78 | 634 | 560 |
| YD620 | RC3" | 620.0 | 37.2 | 1313.6 | 200 | 189 | 1012 | 78 | 889 | 780 |
| Technical requirements | Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C. | |||||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
