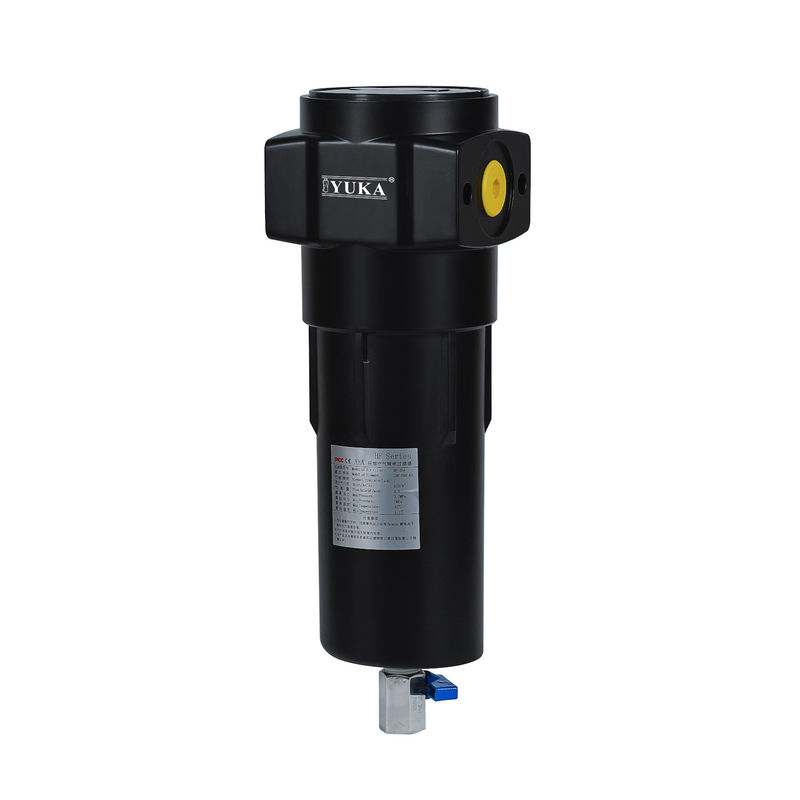

High Cyclone Water Separator with Manual Ball Valve

Product Details

Place of Origin: China

Brand Name: Yuka

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: Negotiable

Packaging Details: Box Package

Delivery Time: 3-7working days

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Model NO.:	Ghfws50	Maxi. Operate Pressure:	3.0 Mpa
Operate Temperature:	1.5~80ºc	Resistance Corrosion:	Inside And Outside
Housing Serve Lige:	15 Years	Remove Condensate Efficiency:	99.73%
Configuration:	Sight Glass, Auto Drain Had20b	FIT FOR:	Ghf068
Color:	Black	Belong To:	Air Compressor System
Trademark:	Yuka	Transport Package:	Brown Inner Box & Cardboard
Specification:	Dimension: 90x 82x 289mm	Origin:	China
HS Code:	8421399090	Customized:	Customized
Standard Component:	Standard Component	Material:	Aluminum Alloy
Category:	Filtering Muffler	Connection:	Rc1"
Flow Rate:	4.5m³/Min

Model NO.:	Ghfws50
Maxi. Operate Pressure:	3.0 Mpa
Operate Temperature:	1.5~80ºc
Resistance Corrosion:	Inside And Outside
Housing Serve Lige:	15 Years
Remove Condensate Efficiency:	99.73%
Configuration:	Sight Glass, Auto Drain Had20b
FIT FOR:	Ghf068
Color:	Black
Belong To:	Air Compressor System
Trademark:	Yuka
Transport Package:	Brown Inner Box & Cardboard
Specification:	Dimension: 90x 82x 289mm
Origin:	China
HS Code:	8421399090
Customized:	Customized
Standard Component:	Standard Component
Material:	Aluminum Alloy
Category:	Filtering Muffler
Connection:	Rc1"
Flow Rate:	4.5m³/Min

Product Description

Product Feature
· 99.73% efficiency of condensate removal
· Inside & Outside resistace corrosion Treatment, prevent second pollution
· Grade A aluminum alloy material, Maxi. pressure up to 3.0 Mpa
· For large side connection, Flange connected available

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100psi g).
For the application in other working pressure, please refer to the correction factors:

Model	Pipe Size	Flow rates			Dimension(mm)
Model	Pipe Size	L/S	m³/min	cfm	W (Weight)	H (High)	A	B
GHFWS 15	RC1/2"	40.00	2.40	84.50	90	82	253	39
GHFWS 25	RC3/4"	60.00	3.60	127.08	90	82	253	39
GHFWS 50	RC1"	75.00	4.50	158.85	90	82	289	39
GHFWS 75	RC1"	125.00	7.50	264.75	120	113	369	52
GHFWS 100	RC1-1/2"	166.67	10.00	353.10	120	113	369	52
Technical requirements	Maximum operating pressure: 30 barg Operating temperature:1.5°C~ 80°C

Pressure	Barg	10	15	20	25	30
Pressure	Psig	145	218	290	363	435
Correction factor		3.0	2.0	1.5	1.2	1.0


YUKA CE & ISO9001-2015 Certificate

Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA Patents

YUKA Factory
Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA Facility

YUKA Exhibitions in Shanghai ComVac Asia & Hannover Messe

YUKA Package
Ghfws50 High Cyclone Water Separator with Manual Ball Valve

YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
