Product Details
Place of Origin: China
Brand Name: Yuka
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Box Package
Delivery Time: 3-7working days
Payment Terms: L/C,T/T
Model No.: |
HAD20B |
Brand: |
YUKA |
Origin: |
China |
Customized: |
Customized |
Standard Component: |
Standard Component |
Material: |
Aluminum |
Trademark: |
Yuka |
Category: |
Filtering Muffler |
HS Code: |
8421999090 |
Inlet & Outlet Connection: |
Rc1/2" |
Maxi.Working Pressure: |
1.0mpa |
Working Temperature: |
1.5~80ºc |
Transport Package: |
Pp Bag & Brown Box |
Principle: |
Stainless Steel Floating Ball |
Liquid Discharge: |
72-75ml |
Maxi. Liquid Discharge Capacity: |
400l/H |
Optional Color: |
Red/Black/Light Blue |
Inner Box: |
115*110*143 |
N.W.: |
0.6kg |
Specification: |
108*180*134mm |
Pressure Drop: |
Zero Air Loss |
Color: |
Red And Blue For Options |
Model No.: |
HAD20B |
Brand: |
YUKA |
Origin: |
China |
Customized: |
Customized |
Standard Component: |
Standard Component |
Material: |
Aluminum |
Trademark: |
Yuka |
Category: |
Filtering Muffler |
HS Code: |
8421999090 |
Inlet & Outlet Connection: |
Rc1/2" |
Maxi.Working Pressure: |
1.0mpa |
Working Temperature: |
1.5~80ºc |
Transport Package: |
Pp Bag & Brown Box |
Principle: |
Stainless Steel Floating Ball |
Liquid Discharge: |
72-75ml |
Maxi. Liquid Discharge Capacity: |
400l/H |
Optional Color: |
Red/Black/Light Blue |
Inner Box: |
115*110*143 |
N.W.: |
0.6kg |
Specification: |
108*180*134mm |
Pressure Drop: |
Zero Air Loss |
Color: |
Red And Blue For Options |

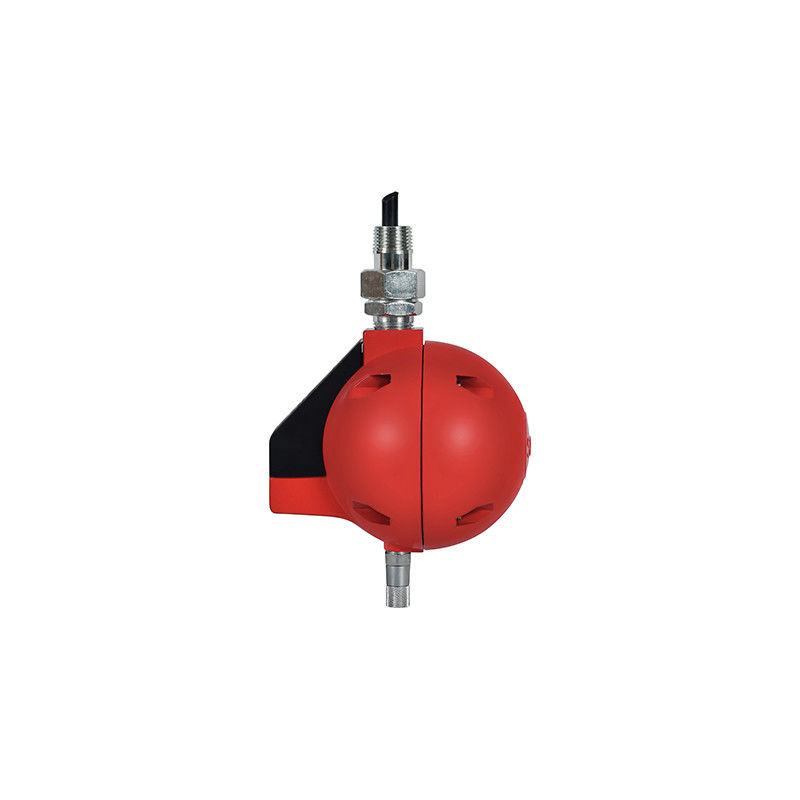

YUKA HAD20B Condensate Auto Drain for air compressors
There is a lot of condensate from the whole compressed air system, especially compressed air come from air compressor, Refrigerated Air Dryer, and pipe line etc. Precise Equipment will be rust by those moisture liquid. Discharge moisture in time is very necessary.
YUKA HAD20B condensate auto drain is made of first-class aluminum alloy materials through die-casting technology, strong and tight, surface is plastic-sprayed, can resist corrosion by synthetic lubricants of air compressor.
Easy to install and clean, no noise and compressed air loss, running safely.
Originated from the automatic draining design of the freestyle float ball, YUKA automatic drains are free from electricity, safe, low carbon, environment friendly and really help our end users save costs.
Floating Ball Auto Drain play very important part on whole compressed air system. No matter on the bottom of air receiver, water separator or air filter. 99.73% condensate will be discharge by auto drain which can save manual operation time and more efficiently.
Product Specification
| Model No. | Inlet | Outlet | Max.working Pressure | Min.working Temperature | Max.working Temperature | Starting value of Liquid emission | Max.liquid Discharge Capacity | Dimension(mm) | ||
| W (width) | D (depth) | H (height) | ||||||||
| HAD10B | RC1/2" | Φ6 | 1.0Mpa | 1.5ºC | 85ºC | 22 ml | 84 L/H | 79 | 75 | 112 |
| HAD20B | RC1/2" | RC1/2" | 1.0Mpa | 1.5ºC | 85ºC | 72-75ml | 400 L/H | 134 | 108 | 180 |
| HAD30B | RC1/2" | RC1/2" | 1.0Mpa | 1.5ºC | 85ºC | 91-93ml | 800 L/H | 172 | 107 | 180 |
