Home > products > Air Compressor Parts > Air Filter Element Material

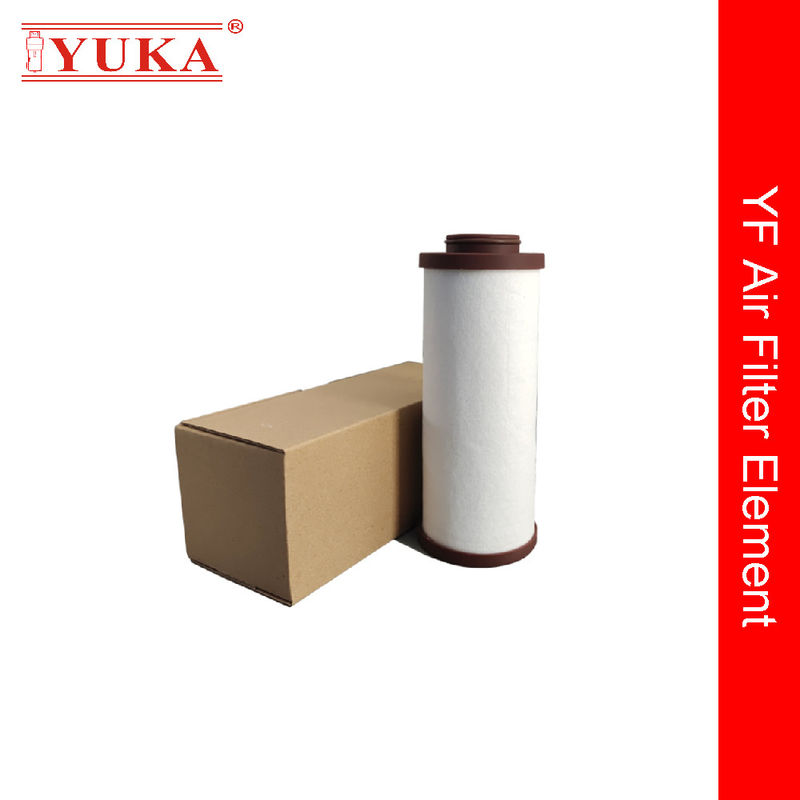

Air Filter Element Material

Product Details

Place of Origin: China

Brand Name: Yuka

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: Negotiable

Packaging Details: Box Package

Delivery Time: 3-7working days

Payment Terms: L/C,T/T

Get Best Price
Product Details
Highlight:
Model No.:
LFA060
Brand:
YUKA
Element Grade:
Pf/Ao/Aa/Ax/Acs/Ar/Aar
Element Spanlife:
Pf/Ao/Aa/Ax 6000 Hours, Acs 20000-3000 Hours
Element Filtration Media:
Borosilicate Fiber Glass
Support Mesh:
Twice In Stainless Steel Material
Low Pressure Loss:
About 0.17-0.25 Bar
Seal O-ring Material:
Fluororubber
Filtration Performance:
99.99%
Element Layer:
Seven
Flow Rate:
3.6m³/Min
Fit For:
Yf060 Air Filter
Model No.:
LFA060
Brand:
YUKA
Element Grade:
Pf/Ao/Aa/Ax/Acs/Ar/Aar
Element Spanlife:
Pf/Ao/Aa/Ax 6000 Hours, Acs 20000-3000 Hours
Element Filtration Media:
Borosilicate Fiber Glass
Support Mesh:
Twice In Stainless Steel Material
Low Pressure Loss:
About 0.17-0.25 Bar
Seal O-ring Material:
Fluororubber
Filtration Performance:
99.99%
Element Layer:
Seven
Flow Rate:
3.6m³/Min
Fit For:
Yf060 Air Filter
Product Description
Product Description





Filter Element Characteristics

1. The air permeability of the precision Filter Element: the filter element adopts a strong hydrophobic and oleophobic fiber filter material, and at the same time adopts a stainless steel support net with good permeability and high strength to reduce the resistance caused by passing.



2. High efficiency of precision Air Filter Element: The filter element uses precision sodium borosilicate glass fiber, filter paper and non-woven fabric, which can effectively prevent oil and water from being entrained by high-speed airflow. The fine oil droplets gather at the lower end of the Compressed Air Filter Element and discharge to the bottom of the filter container.



3. The air tightness of the precision fiber glass filter element: The connection point of the filter element and the filter housing adopts a reliable perfluorinated sealing ring to ensure that the air flow is not short-circuited and prevent impurities from directly entering the downstream without passing through the filter element.



4. Anti-corrosion of precision filter element: The filter element adopts anti-corrosion PA+GF end cap, under 1.8Mpa pressure, it can withstand high temperature of 240without deformation and -20without embrittlement. The double-layer stainless steel support net can prevent general acid and alkali chemical corrosion and can be used in harsh working conditions.



The main principle of the filter element is also the main principle of the filter. It is the purification equipment needed to purify the original ecological resources and the reuse of resources. The filter element is generally mainly used in filtration industries such as oil filtration, water filtration, and air filtration.



Removal of a small amount of impurities in the filter medium can protect the normal operation of the equipment or the cleanness of the air. When the fluid passes through the filter element with a certain precision in the filter, its impurities are blocked, and the clean fluid flows out through the filter element.



The filter element can purify the contaminated medium to achieve the clean state required for production and have a certain degree of cleanliness. The filter element is used in a wide range, such as steel smelting, power production, food and beverage, etc.



Customer Benefits

① Long spanlife under rate working conditions.

② Filtration performance up to 0.01micron and residual oil up to 0.001mg/m³ in according with ISO8573.1-2010 standard.

③ Low pressure drop, saving energy and cost for ownership.

④ Colorful element top cap, Spin-on for filter, easy operate and maintain.





Element Technical Specification



Filtration Grade Air Filter Element Material 0



Air Filter Element Material 1

Air Filter Element Material 2 Air Filter Element Material 3 Air Filter Element Material 4 Air Filter Element Material 5 Air Filter Element Material 6
PF AO AA AX ACS AR AAR
Particle removal (ISO12500-3) 5μm 1μm 0.01μm 0.01μm - 1μm 0.01μm
Outlet oil aerosol concentration (ISO12500-1) 5mg/m³ 0.6mg/m³ <0.01mg/m³ <0.001mg/m³ <0.004mg/m³ - -
Filtration performance of Particle (ISO12500-3) - 99.999+% 99.999+% 99.999+% 99.999+% 99.999+% 99.999+%
Filtration performance of oil (ISO12500-1) 50% 80+% 99.9+% 99.99+% - - -
Element spanlife 6000 hours 6000 hours 6000 hours 6000 hours 2000-3000 hours 4000-6000 hours 4000-6000 hours
Precede with Before Refrigerated Air Dryer after air dryer after AO after AA before AX after desiccant dryer after AR


Detail of Element
Air Filter Element Material 7
